· Provides maximum performance, connecting up to 10x faster than Fast Ethernet
· Makes it simple to combine Fast Ethernet and Gigabit devices in your network
· Incorporates Plug-and-Play ease of use


Network Ports
· 5 auto-sensing UTP ports

Forwarding Mode
· Store-and-forward
· 128 KB on-chip packet buffering

Performance
· Bandwidth:
· 10 Gbps (non-blocking)
· Forward rate
· 10 Mbps port: 14,800 packets/sec
· 100 Mbps port: 148,000 packets/sec
· 1000 Mbps port: 1,480,000 packets/sec
· MAC address database: 4,000
· Mean time between failures (MTBF): >1 million hours (110 years)

Status LEDs
· System power
· Link, speed and activity indicators per port built into each RJ-45 port

AC Power
· Power adapter: 12W, 12V DC, 1A
· Maximum power consumption: 3.5W

Physical Specifications
· Dimensions (w x d x h): 94 x 104 x 28 mm (3.7 x 4.1 x 1.1 in)
· Weight: 0.30 kg (0.66 lb)

Environmental Specifications
· Operating temperature: 0° to 50° C (32° to 122° F)
· Operating humidity: 10% to 90% non-condensing
· Storage temeprature: -20° to 70° C (-4° to 158° F)
· Storage humidity: 10% to 95% relative humidity

Standards Compliance
· IEEE 802.3i 10BASE-T Ethernet
· IEEE 802.3u 100BASE-TX Fast Ethernet
· IEEE 802.3ab 1000BASE-T Gigabit Ethernet
· IEEE 802.3x Full-duplex flow control
· IEEE 802.1p priority tags
· Honors IEEE 802.1p and DSCP priority tags
· Jumbo frame support (9,720 byte)

Safety Agency Approvals
· C-Tick, CE Mark

Emissions
· FCC Class A, VCCI Class A, MIC

Package Contents

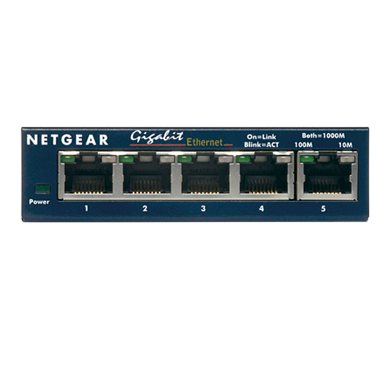

· ProSafe 5-port or 8-port Gigabit Ethernet Desktop Switch 10/100/1000 (GS105v3 or GS108v3)
· Wall-mount kit
· AC adapter
· Installation guide
· Warranty & support information card
