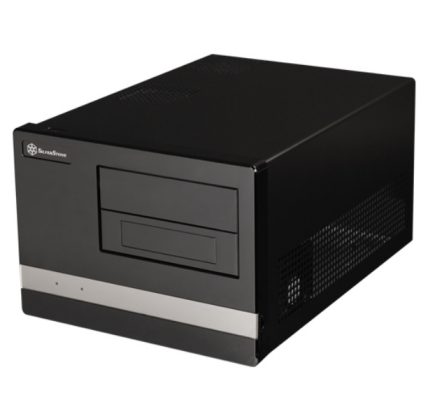

The SG02F, as the successor to the SG02 is an evolutionary step forward in both performance and the capabilities over the original Sugo chassis, the SG01. With the case now capable of handling even more powerful graphics cards than ever before, the SilverStone engineers were still able to keep the smaller dimension in tact. Although SG02F's front panel design is unchanged from its predecessor, its styling and function continues to stand out from ordinary SFF designs. The same can also be said of its tried and true chassis layout, which is still capable of accepting larger ATX power supply or optical drives than other SFF cases available. Built based on a brand new steel structure, the SG02F is sure to please potential builders looking for primarily silent applications.

· Steel structure for silent builds
· Modern and cleanly styled SFF chassis
· Enhanced cooling layout for high performance
· Dual 5.25" and 3.5" drive bays
· Micro ATX motherboard & ATX PSU compatible
· Extended-length expansion cards support


SPECIFICATIONS

Model No.
· SST-SG02B-F-USB3.0 (black)

Material
· ABS & acrylic front panel, SECC body

Motherboard
· Micro-ATX, Mini-DTX

Drive bay
· External 5.25" x 2, 3.5" converter x 1
· Internal 3.5" x 2

Cooling system
· Front --
· Rear 1 x 80mm fan slot, Optional cross-flow fan
· Side 1 x 80mm intake fan 2050rpm Option 80mm or 70mm in thickness of 25mm, 15mm or 10mm
· Top 1 x 80mm fan slot
· Bottom --
· Internal --

Expansion slot
· 4

Front I/O port
· USB 3.0 x 2 (SST-SG02B-F-USB3.0, SST-SG02W-F-USB3.0 only)
· Audio x 1
· MIC x 1

Power supply
· Optional standard PS2(ATX)

Expansion card
· Compatible up to 14.5" (368mm) long, width restriction-4.46" (113mm)*

Limitation of CPU cooler
· 82mm

Limitation of PSU
· PSU + optical drive/5.25" device = 370mm

Net weight
· 4.1 kg

Dimension
· 270 mm (W) x 212 mm (H) x 393 mm (D), 22.5 liters
