EW-7822UAC
AC1200 Wireless Dual-Band USB Adapter

· World's first AC1200 Wi-Fi Adapter with a USB 3.0 port
· Backward compatible with 802.11a/b/g/n standards
· Dual-band wireless connectivity for 2.4GHz or 5GHz
· Adjustable foldaway antenna for optimum Wi-Fi performance
· Compatible with Windows 8

802.11ac Truly Realized with USB 3.0
USB 3.0 is up to 10 times faster than USB 2.0 and specifies a maximum transmission speed of up to 5Gbps. Providing quicker data transmission times, and backwards compatibility with USB 2.0 (which specifies a maximum speed of 480Mbps), USB 3.0 is the new standard in connectivity - enabling devices to achieve the superfast speeds which 802.11ac can provide.

Dual-band Connectivity
Enjoy better performance and greater flexibility for your Wi-Fi devices, using dual-band connectivity. The EW-7822UAC provides concurrent connectivity for the 2.4GHz band and 5GHz band at speeds of 300Mbps and 867Mbps respectively.

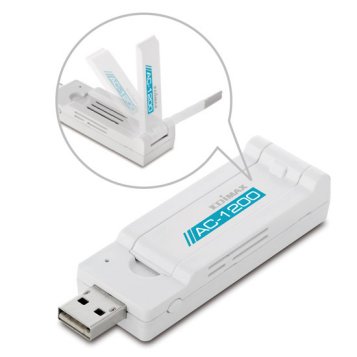

Adjustable Foldaway Antenna
The EW-7822UAC's sleek design features an adjustable foldaway antenna, allowing users to adjust the antenna's angle for optimum Wi-Fi performance and fold back the antenna to minimize size when it's not in use.


Specifications:

Hardware
· 1x USB 3.0 Type A
· 1x Hardware WPS Button
· 1x Link/Activity LED
· 2x Antennas

Standards
· 2.4GHz: IEEE 802.11b, 802.11g, 802.11n
· 5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n

Frequency Band
· 2.4000 - 2.4835GHz (subject to local regulations)
· 5.150 - 5.825GHz (subject to local regulations)

Output Power
· 2.4GHz
- 11b (11Mbps): 16dBm±1.5dBm
- 11g (54Mbps): 14dBm±1.5dBm
- 11n (20MHz, MCS7): 14dBm±1.5dBm
- 11n (40MHz, MCS7): 12dBm±1.5dBm
· 5GHz
- 11a (54Mbps): 12dBm±1.5dBm
- 11n (20MHz, MCS7): 10dBm±1.5dBm
- 11n (40MHz, MCS7): 10dBm±1.5dBm
- 11ac (80MHz, MCS7): 9.5dBm±1.5dBm

Installation
· Multi-Language EZmax Setup Wizard
· Hardware WPS Button for Easy Wireless Connections

Operating Range
· 11a: 6/9/12/24/36/48/54Mbps
· 11b: 1/2/5.5/11Mbps
· 11g: 6/9/12/24/36/48/54Mbps
· 11n (20MHz): MCS0-15 (up to 144Mbps)
· 11n (40MHz): MCS0-15 (up to 300Mbps)
· 11ac (40MHz): MCS0-9 (up to 400Mbps)
· 11ac (80MHz): MCS0-9 (up to 867Mbps)

LED
· Link/Activity

Security
· WEP 64/128-bit, WPA, WPA2, 802.1x
· Hardware & Software WPS Configuration

Temperature & Humidity
· Max. 95% (non-condensing)
· 32 - 104°F (0 - 40°C)

Dimensions & Weight
· 18 (H) x 27 (W) x 87.1 (L) mm
· 23g

Certifications
· CE/FCC
