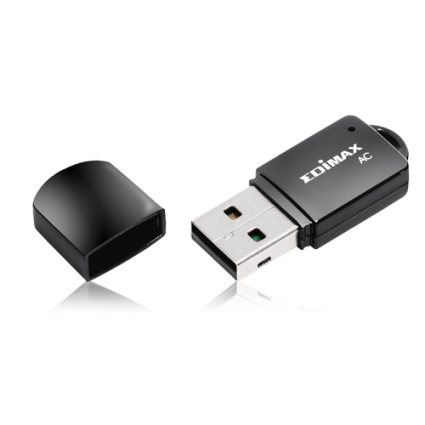

EW-7811UTC
AC600 Wireless Dual-Band Mini USB Adapter

· Complies with draft IEEE 802.11ac standard and backward compatible with wireless 802.11a/b/g/n standards
· Dual-band wireless connectivity for 2.4GHz or 5GHz
· Maximum Wi-Fi speeds of 150Mbps (2.4GHz) or 433Mbps (5GHz)
· Features a hardware WPS (Wi-Fi Protected Setup) button for easy wireless connections
· Features easy setup wizard
· Supports Windows XP/Vista/7/8, Linux and Mac OS X drivers

The next generation 802.11ac wireless standard is set to revolutionize Wi-Fi. Super-speed 802.11ac dual-band routers are already available but wireless devices are still stuck with 802.11n technology. Upgrade your wireless device to dual-band 802.11ac with the fastest possible USB 2.0 connectivity for blistering Wi-Fi speeds on the interference free 5Ghz frequency band.


Specifications

Hardware
·1 x USB 2.0 Type A
·1 x Hardware WPS Button
·1 x Link/Activity LED

Standards
·2.4GHz: IEEE 802.11b, 802.11g, 802.11n
·5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n

Frequency Band
·2.4000 - 2.4835GHz (subject to local regulations)
·5.150 - 5.825GHz (subject to local regulations)

Output Power
·2.4GHz
- 11b (11Mbps): 17dBm±1.5dBm
- 11g (54Mbps): 15dBm±1.5dBm
- 11n (20MHz, MCS7): 14dBm±1.5dBm
- 11n (40MHz, MCS7): 14dBm±1.5dBm
·5GHz
- 11a (54Mbps): 14dBm±1.5dBm
- 11n (20MHz, MCS7): 13dBm±1.5dBm
- 11n (40MHz, MCS7): 13dBm±1.5dBm
- 11ac (80MHz, MCS7): 12dBm±1.5dBm

Installation
·Easy setup wizard
·Hardware WPS Button for Easy Wireless Connections

Operating Range
·11a: 6/9/12/24/36/48/54Mbps
·11b: 1/2/5.5/11Mbps
·11g: 6/9/12/24/36/48/54Mbps
·11n (20MHz): MCS0-7 (up to 72Mbps)
·11n (40MHz): MCS0-7 (up to 144Mbps)
·11ac (80MHz): MCS0-9 (up to 433Mbps)

LED
·Link/Activity

Security
·WEP 64/128-bit, WPA, WPA2, 802.1x
·Hardware & Software WPS Configuration

Temperature & Humidity
·Max. 95% (non-condensing)
·32 - 104°F (0 - 40°C)

Dimensions & Weight
· 40 (H) x 16 (W) x 7 (D) mm
· 3g

Certifications
· CE/FCC

Package Contents
· Wireless USB adapter (1 pcs)
· Quick installation guide (1 pcs)
· CD with setup wizard, driver and multi-language QIG (1 pcs)
