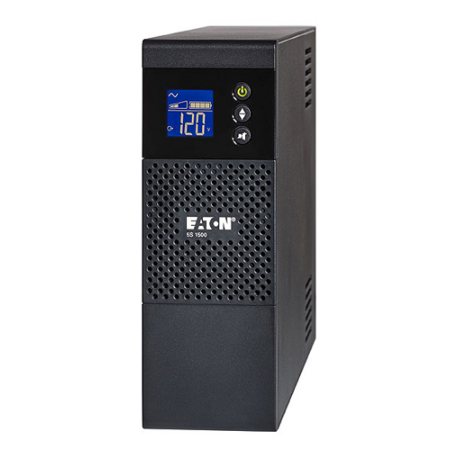

Eaton 5S UPS 550 - 1600VA
Affordable power protection for workstations and POS equipment

Performance
· The Eaton 5S UPS provides effective power protection, even in disturbed electrical environments. Voltage fluctuations are automatically corrected using an AVR device (booster/fader), without needing the batteries.
· The 5S not only provides a supply with battery backup to keep equipment operating during power cuts, but also provides effective protection against damaging surges.

Reliability
· The 5S protects networked equipment from “back door” power surges coming through Ethernet, internet or telephone lines.
· The 5S's periodic automatic battery testing ensures early detection if a battery needs to be replaced.
· The easy-to-replace battery helps to extend the UPS service life.

Versatility
· The 5S can be installed vertically over or under a desk, or horizontally under a screen. Its compact, slimline form factor even allows it to be easily integrated into environments with space constraints.
· The 5S features an HID-compliant USB port, for automatic integration with common operating systems (Windows/ Mac OS/Linux). The 5S is also compatible with Eaton UPS Companion power management software.
· All models come bundled with a USB cable for PC connection

Energy Saving
· Reduce wasted energy consumption from standby power drain of connected peripheral equipment with ECO Control function (850-1600VA models)

Ideal for protecting:
· Workstations
· Business Telephony
· Network devices
· Point-of-sale equipment


Specifications:

Electrical Characteristics:
· Technology Line-Interactive (AVR with Booster + Fader)
· Input voltage range 175V-275V
· Output voltage 240 V
· Frequency 50-60 Hz autoselect

Connections
· Number of AUS outlets 6
· Outlets with surge protection and battery backup 3
· Outlets with surge protection only 3

Batteries
· Typical backup times at 50 and 70% load* 11/8 min
· Battery management Automatic battery test, deep-discharge protection, cold-start capable, replaceable batteries

Communication
· User Interface LED LCD
· Communication Port HID-compliant USB port for automatic integration with most common operating systems
· (Windows Vista, 7 & 8, Linux, Mac OS X), cable supplied
· Data line protection Tel/Fax/Modem/Internet and Ethernet

Standards
· Safety & EMC IEC/EN 62040-1, IEC/EN 62040 -2, CB Report, CE mark C-Tick

Dimensions & Weight
· Dimensions H x W x D 250 x 87 x 382 mm
· Weight 11.08kg

Customer Service & Support
· Warranty 2 years warranty including batteries


* Runtimes are shown at 0.7 power factor. Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
