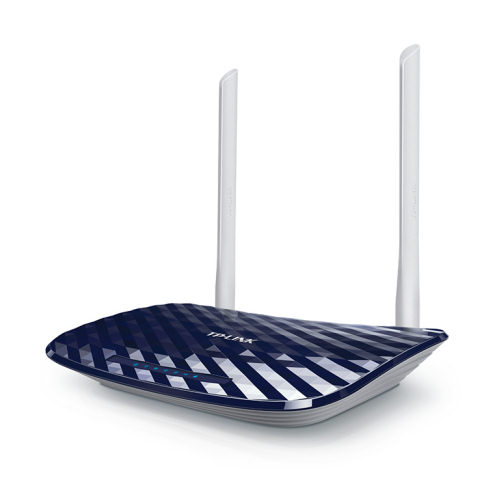

Archer C20
AC750 Wireless Dual Band Router

· Supports 802.11ac standard - the next generation of Wi-Fi
· Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
· 2 external antennas provide stable omnidirectional signal and superior wireless coverage
· USB port - share a printer locally and files & media with networked devices or remotely via FTP server

HARDWARE FEATURES
Interface	4 10/100Mbps LAN ports 1 10/100Mbps WAN port 1 USB 2.0 port
Button	WPS/Reset Button Wireless On/Off Switch Power On/Off Button
Antenna	2 x 2.4GHz Antennas 1 x 5GHz Antenna
External Power Supply	12VDC /1A
Dimensions ( W x D x H )	9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
Antenna Type	Two dual band fixed antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz: Up to 433Mbps 2.4GHz: Up to 300Mbps
Reception Sensitivity	5GHz 11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm 11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm, 11n HT20: -71dBm, 11n HT40: -69dBm 2.4GHz 11g 54M: -76dBm 11n HT20: -74dBm, 11n HT40: -71dBm
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Transmission Power	CE: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm
