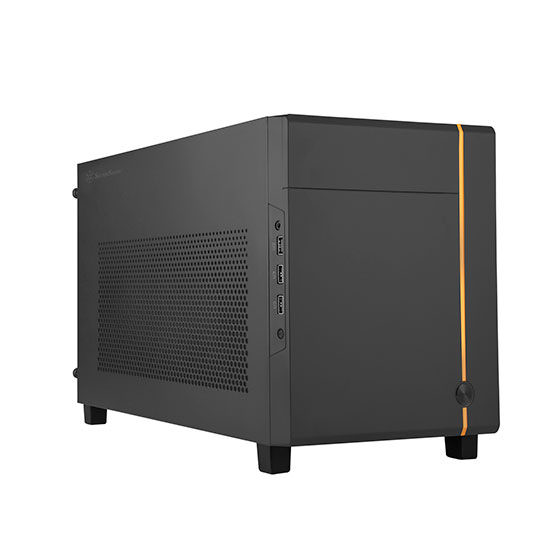

SUGO 14
Mini-ITX cube chassis with powerful accommodation

· Supports 3 slot full length graphics cards with adjustable graphics card holder
· Compatible with Mini-DTX / Mini-ITX motherboard & ATX PSU
· Supports up to 240mm radiators
· Modular design with 4 removable panels (top, left, right, bottom)
· Different configurations support various storage components for 5.25", 3.5" and 2.5"
· Front I/O port includes: USB 3.0 x 2, USB 2.0 x 1, combo audio x 1


SPECIFICATIONS

Model No.
SST-SG14B (black)

Material
Plastic front panel, steel body

Motherboard
Mini-DTX, Mini-ITX

Drive bay
External 5.25" x 1 (without radiator and 3.5" x 1 installed)
Internal 3.5" x 2 (without radiator and 5.25" installed)
2.5" x 3

Cooling system
Front --
Rear 120mm / 140mm x 1 (120mm black fan x 1 included)
Side 120mm / 140mm x 2
Top 120mm
Bottom --
Internal --

Radiator support
Front --
Rear 120mm
Side 120mm / 240mm
Bottom --
Internal --

Expansion slot
3

Front I/O port
USB 3.0 x 2
USB 2.0 x 1
Combo audio x 1

Power supply
Standard PS2(ATX)

Limitation of VGA card
Length: 330mm
Width: 148mm

Limitation of CPU cooler
Air cooler: 182mm (without top fan)
240mm AIO water block: 55mm

Limitation of PSU
150mm

Net weight
4.89 kg

Dimension
247mm (W) x 215mm (H) x 368.1mm (D), 19.55 liters
