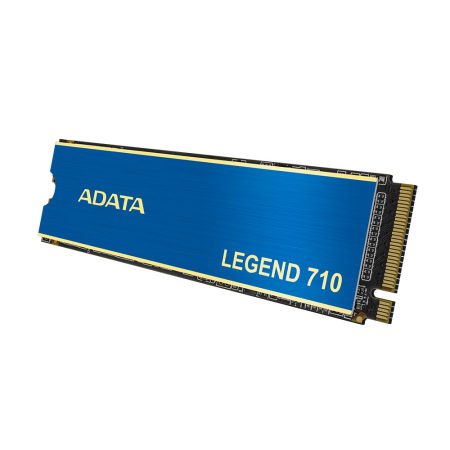

LEGEND 710 PCIe Gen3 x4 M.2 2280 Solid State Drive

· PCIe Gen3 x4 interface
· Excellent read/write performance
· Heat sink keeps things 15% cooler
· Great upgrade option for creators
· High capacities
· Supports NVMe 1.4
· LDPC & AES 256-bit encryption
· Supports Host Memory Buffer (HMB)
· 3-year warranty

The LEGEND 710 utilizes PCIe Gen3 x4 and NVMe 1.4 to deliver sustained read and write speeds of up to 2,400/1,800MB per second. It's M.2 2280 specification supports the latest Intel and AMD platforms, including desktop PCs and laptops.


Specifications:

· Capacity 256GB / 512GB / 1TB / 2TB
· Form factor M.2 2280
· NAND Flash 3D NAND
· Controller RTS5766DL
· Dimensions (L x W x H) 80x22x3.13mm (with heat sink), 80x22x2.15mm (without heat sink)
· Weight 9g / 0.32oz (with heat sink), 6.2g / 0.22oz (without heat sink)
· Interface PCIe Gen3 x4
· Sequential Read (Max) Up to 2,400MB/s*
· Sequential Write (Max) Up to 1,800MB/s*
· 4KB Random Read IOPS(Max) Up to 200K*
· 4KB Random Write IOPS(Max) Up to 150K*
· Operating temperature 0°C - 70°C
· Storage temperature -40°C - 85°C
· Shock resistance 1500G/0.5ms
· MTBF 1,500,000 hours
· Terabytes Written (TBW) 520TB**
· Warranty 3-year limited warranty***


Remark
* Performance may vary based on SSD capacity, host hardware and software, operating system, and other system variables.
** The value is the minimum amount of terabyte written that could be reached.
*** The SSD is based on the TBW or Warranty period. Visit https://www.adata.com/us/support/warranty/ for more details.
